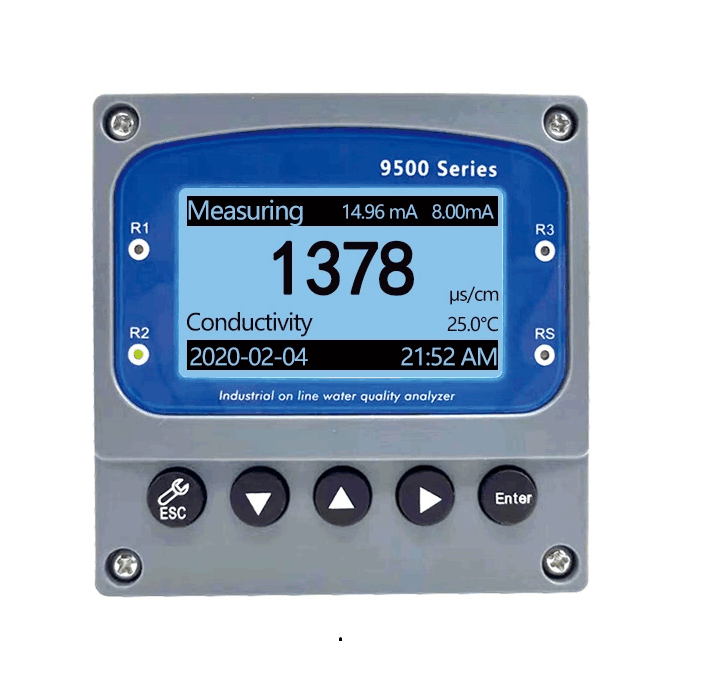

EC-9500 Conductivity/Resistivity Controller

EC-9500 industrial online conductivity/resistivity measurement and control instrument, integrated with ARM MCU chip, signal measurement in the form of software automatic real-time tracking, to achieve intelligent instrument, so that the measurement accuracy and stability are further improved;
Support both CHinese and English,PT1000, NTC10K and manual temperature compensation are available in three temperature compensation modes. Two 4-20MA outputs, corresponding to Conductivity/Resistance/TDS value and temperature, using isolation technology, strong anti-interference ability. The high and low points of the 3 sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid relays on and off frequently.

SPECIFICATION

Model: EC-9500

Name: EC-9500 Conductivity/Resistivity Controller

Measuring Range: 0.05uS/cm – 200mS/cm; 0.00 MΩ·cm~20.00 MΩ·cm

Displaying Mode:LCD dot matrix display;

Accuracy: ±0.01 uS/cm; ±1ppm;

Resolution: 0.01uS/cm; 1ppm;

Temperature compensation: 0–120℃ Manual / Auto(PT1000/NTC10K);

Signal output: 4-20mA isolation protection output,independent corresponding Conductivity/Resistance or temperature, maximum load is 500Ω;

Alarm output: 3 groups can randomly correspond to high and low point alarm (3A/250 V AC), normally open contact relay;

Waterproof: Yes

Power supply: AC100-240V or DC24V

Power consumption:≤7W

Environmental condition:(1)temperature 0~50 ℃; (2)humidity≤85% RH;

Dimensions: 96×96×132mm(H×W×D;

Hole: 92.5×92.5mm(H×W)
